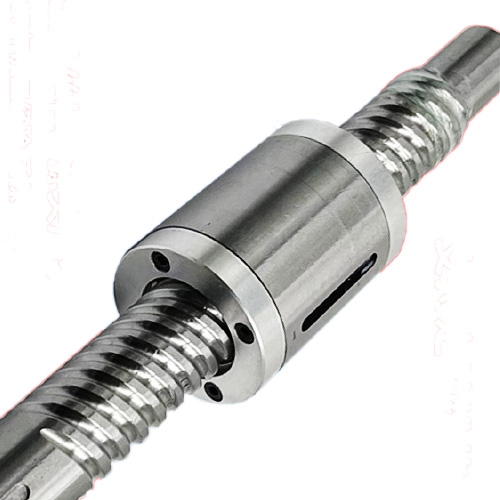

RSI圆形内循环单螺母滚珠丝杠选型
- 内循环滚珠丝杆-RSI圆形内循环单螺母滚珠丝杠选型

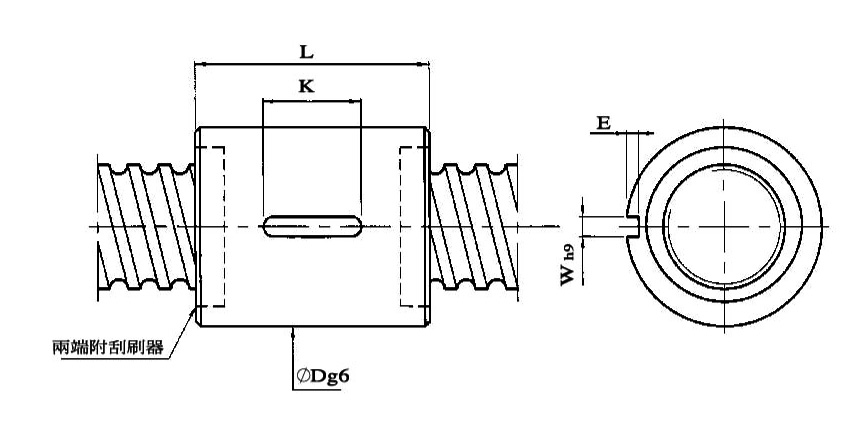

规格表
|
丝杆型号
|
轴径
|
导程
|
珠经
|
珠卷数
|
动负荷
|
静负荷
|
刚性
|
螺母外径
|
螺母全长L
|
键槽长
|
键槽宽
|
键槽高
|
|
R20-6T4-RSI
|
20.0
|
6.0
|
3.969
|
4.0
|
1640.0
|
3500.0
|
51.0
|
34.0
|
103.0
|
25.0
|
4.0
|
2.5
|
|
R25-5T3-RSI
|
25.0
|
5.0
|
3.175
|
3.0
|
1210.0
|
2340.0
|
49.0
|
40.0
|
75.0
|
20.0
|
4.0
|
2.5
|
|
R25-5T4-RSI
|
25.0
|
5.0
|
3.175
|
4.0
|
1550.0
|
4100.0
|
64.0
|
40.0
|
85.0
|
20.0
|
4.0
|
2.5
|
|
R25-6T3-RSI
|
25.0
|
6.0
|
3.969
|
3.0
|
1540.0
|
2790.0
|
48.0
|
40.0
|
87.0
|
20.0
|
4.0
|
2.5
|
|
R25-6T4-RSI
|
25.0
|
6.0
|
3.969
|
4.0
|
1970.0
|
4800.0
|
64.0
|
40.0
|
103.0
|
25.0
|
4.0
|
2.5
|
|
R32-5T4-RSI
|
32.0
|
5.0
|
3.175
|
4.0
|
1810.0
|
5500.0
|
80.0
|
48.0
|
85.0
|
20.0
|
4.0
|
2.5
|
|
R32-5T6-RSI
|
32.0
|
5.0
|
3.175
|
6.0
|
2570.0
|
8300.0
|
118.0
|
48.0
|
105.0
|
25.0
|
4.0
|
2.5
|
|
R32-6T4-RSI
|
32.0
|
6.0
|
3.969
|
4.0
|
2390.0
|
6700.0
|
82.0
|
48.0
|
103.0
|
25.0
|
4.0
|
2.5
|
|
R32-8T4-RSI
|
32.0
|
8.0
|
4.763
|
4.0
|
2880.0
|
7400.0
|
79.0
|
50.0
|
127.0
|
25.0
|
5.0
|
3.0
|
|
R32-10T3-RSI
|
32.0
|
10.0
|
6.35
|
3.0
|
3000.0
|
6700.0
|
60.0
|
56.0
|
135.0
|
25.0
|
6.0
|
3.5
|
|
R32-10T4-RSI
|
32.0
|
10.0
|
6.35
|
4.0
|
3850.0
|
9000.0
|
79.0
|
56.0
|
155.0
|
32.0
|
6.0
|
3.5
|
|
R40-5T4-RSI
|
40.0
|
5.0
|
3.175
|
4.0
|
2060.0
|
7100.0
|
98.0
|
55.0
|
85.0
|
20.0
|
4.0
|
2.5
|
|
R40-5T6-RSI
|
40.0
|
5.0
|
3.175
|
6.0
|
2920.0
|
10700.0
|
144.0
|
55.0
|
105.0
|
25.0
|
4.0
|
2.5
|
|
R40-6T4-RSI
|
40.0
|
6.0
|
3.969
|
4.0
|
2700.0
|
8600.0
|
99.0
|
56.0
|
103.0
|
25.0
|
5.0
|
3.0
|
|
R40-8T4-RSI
|
40.0
|
8.0
|
4.763
|
4.0
|
3430.0
|
10100.0
|
101.0
|
60.0
|
127.0
|
25.0
|
5.0
|
3.0
|
|
R40-10T3-RSI
|
40.0
|
10.0
|
6.35
|
3.0
|
3600.0
|
10100.0
|
75.0
|
65.0
|
135.0
|
25.0
|
6.0
|
3.5
|
|
R40-10T4-RSI
|
40.0
|
10.0
|
6.35
|
4.0
|
4610.0
|
12300.0
|
99.0
|
65.0
|
155.0
|
32.0
|
6.0
|
3.5
|
|
R50-5T4-RSI
|
50.0
|
5.0
|
3.175
|
4.0
|
2320.0
|
9200.0
|
119.0
|
65.0
|
85.0
|
20.0
|
4.0
|
2.5
|
|
R50-5T6-RSI
|
50.0
|
5.0
|
3.175
|
6.0
|
3290.0
|
13800.0
|
175.0
|
65.0
|
105.0
|
25.0
|
4.0
|
2.5
|
|
R50-10T4-RSI
|
50.0
|
10.0
|
6.35
|
4.0
|
5400.0
|
16400.0
|
122.0
|
75.0
|
135.0
|
32.0
|
6.0
|
3.5
|
