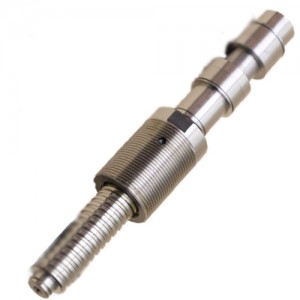

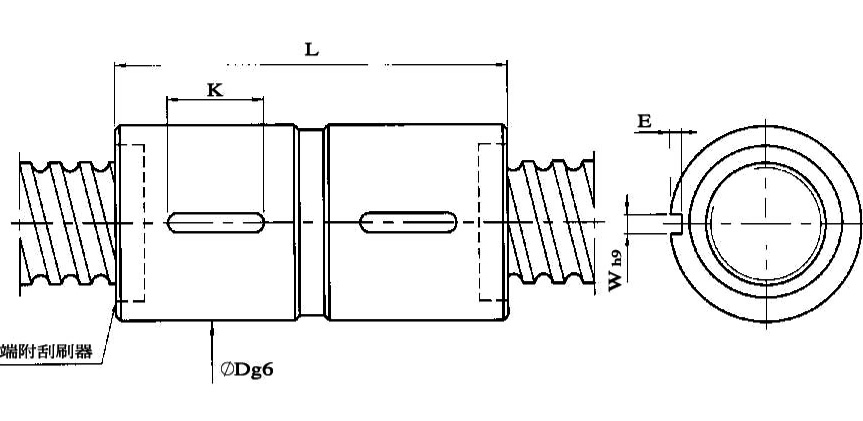

丝杆型号 | 轴径 | 导程 | 珠经 | 珠卷数 | 动负荷 | 静负荷 | 刚性 | 螺母外径 | 螺母全长L | 键槽长 | 键槽宽 | 键槽高 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
R20-5T4-RDI | 20.0 | 5.0 | 3.175 | 4.0 | 1320.0 | 3000.0 | 52.0 | 34.0 | 85.0 | 20.0 | 4.0 | 2.5 |
R20-6T4-RDI | 20.0 | 6.0 | 3.969 | 4.0 | 1640.0 | 3500.0 | 51.0 | 34.0 | 103.0 | 25.0 | 4.0 | 2.5 |
R25-5T3-RDI | 25.0 | 5.0 | 3.175 | 3.0 | 1210.0 | 2340.0 | 49.0 | 40.0 | 75.0 | 20.0 | 4.0 | 2.5 |
R25-5T4-RDI | 25.0 | 5.0 | 3.175 | 4.0 | 1550.0 | 4100.0 | 64.0 | 40.0 | 85.0 | 20.0 | 4.0 | 2.5 |
R25-6T3-RDI | 25.0 | 6.0 | 3.969 | 3.0 | 1540.0 | 2790.0 | 48.0 | 40.0 | 87.0 | 20.0 | 4.0 | 2.5 |
R25-6T4-RDI | 25.0 | 6.0 | 3.969 | 4.0 | 1970.0 | 4800.0 | 64.0 | 40.0 | 103.0 | 25.0 | 4.0 | 2.5 |
R32-5T4-RDI | 32.0 | 5.0 | 3.175 | 4.0 | 1810.0 | 5500.0 | 80.0 | 48.0 | 85.0 | 20.0 | 4.0 | 2.5 |
R32-5T6-RDI | 32.0 | 5.0 | 3.175 | 6.0 | 2570.0 | 8300.0 | 118.0 | 48.0 | 105.0 | 25.0 | 4.0 | 2.5 |
R32-6T4-RDI | 32.0 | 6.0 | 3.969 | 4.0 | 2390.0 | 6700.0 | 82.0 | 48.0 | 103.0 | 25.0 | 4.0 | 2.5 |
R32-8T4-RDI | 32.0 | 8.0 | 4.763 | 4.0 | 2880.0 | 7400.0 | 79.0 | 50.0 | 127.0 | 25.0 | 5.0 | 3.0 |
R32-10T3-RDI | 32.0 | 10.0 | 6.35 | 3.0 | 3000.0 | 6700.0 | 60.0 | 56.0 | 135.0 | 25.0 | 6.0 | 3.5 |
R32-10T4-RDI | 32.0 | 10.0 | 6.35 | 4.0 | 3850.0 | 9000.0 | 79.0 | 56.0 | 155.0 | 32.0 | 6.0 | 3.5 |
R40-5T4-RDI | 40.0 | 5.0 | 3.175 | 4.0 | 2060.0 | 7100.0 | 98.0 | 55.0 | 85.0 | 20.0 | 4.0 | 2.5 |
R40-5T6-RDI | 40.0 | 5.0 | 3.175 | 6.0 | 2920.0 | 10700.0 | 144.0 | 55.0 | 105.0 | 25.0 | 4.0 | 2.5 |
R40-6T4-RDI | 40.0 | 6.0 | 3.969 | 4.0 | 2700.0 | 8600.0 | 99.0 | 56.0 | 103.0 | 25.0 | 5.0 | 3.0 |
R40-8T4-RDI | 40.0 | 8.0 | 4.763 | 4.0 | 3430.0 | 10100.0 | 101.0 | 60.0 | 127.0 | 25.0 | 5.0 | 3.0 |
R40-10T3-RDI | 40.0 | 10.0 | 6.35 | 3.0 | 3600.0 | 10100.0 | 75.0 | 65.0 | 135.0 | 25.0 | 6.0 | 3.5 |
R40-10T4-RDI | 40.0 | 10.0 | 6.35 | 4.0 | 4610.0 | 12300.0 | 99.0 | 65.0 | 155.0 | 32.0 | 6.0 | 3.5 |
R50-5T4-RDI | 50.0 | 5.0 | 3.175 | 4.0 | 2320.0 | 9200.0 | 119.0 | 65.0 | 85.0 | 20.0 | 4.0 | 2.5 |
R50-5T6-RDI | 50.0 | 5.0 | 3.175 | 6.0 | 3290.0 | 13800.0 | 175.0 | 65.0 | 105.0 | 25.0 | 4.0 | 2.5 |
